When choosing spa equipment for home or outdoor use, size is often the first consideration for many users. This is especially true for a 3-person spa hot tub, which must not only comfortably accommodate three users but also be compatible with installation space, plumbing systems, and maintenance needs.
So, how big exactly is a 3-person spa hot tub?
Are there fixed specifications?
Do differences between manufacturers affect the actual selection?
This article will provide you with the most systematic and professional reference from multiple perspectives, including size, capacity, structural configuration, and installation requirements. Combining manufacturing experience, it analyzes why 3-person models typically use a specific size range from the aspects of design logic, nozzle layout, and pump configuration.
The standard size of a 3-person spa hot tub supplied by MEXDA is:
Approximately 1860 × 1310 × 780 mm
This is a relatively typical size range in the industry, conforming to ergonomics and structural stability, and meeting the basic requirements for comfortable use by three users.
What are the typical dimensions of a 3-person spa hot tub?
While the external dimensions may vary slightly between brands, most 3-person spa hot tubs fall within the following range:
• Length: 1800 – 2000 mm
• Width: 1200 – 1500 mm
• Height: 700 – 850 mm
This size design accommodates the space needed for three people to bathe simultaneously while maintaining a balance in the internal piping layout, nozzle system, pump capacity, and heating efficiency.
MEXDA's 3-person spa hot tub uses:
✔ 1860 mm Length
✔ 1310 mm Width
✔ 780 mm Height
This is a very typical and standardized set of dimensions, ensuring:
• Not taking up too much outdoor space
• Sufficient space for three adults
• Harmonious structural proportions
• Stable operation
• Rational layout of internal components
Why do 3-person spa hot tubs typically use a design of approximately 1860 × 1310 × 780 mm?
The reasons why 3-person spa hot tubs usually adopt this size range include the following:
1. Ergonomics dictates the internal seating layout
The three seats need to simultaneously meet:
• One person in a reclining/semi-reclining position
• Two people in a sitting position
• Legroom is required in each position
• No crowding or interference with nozzle placement
The 1860 mm length allows for a comfortable semi-reclining position while also allowing for a staggered seating arrangement for two people.
2. Control System and Pump Location Limitations
Space must be reserved at the bottom of the spa hot tub for:
• Main circulation pump
• Heater
• Control box
• Piping system
• Air pump
A width of 1310 mm provides sufficient space for side equipment installation, ensuring smooth piping layout.
3. Maintaining the Optimal Balance of Water Flow and Heating Efficiency
Larger sizes require more water flow, necessitating:
• Higher power heater
• More powerful pump
• Longer heating time
For a 3-person spa hot tub with dimensions in the 1860 × 1310 mm range:
• Moderate water flow
• A 3 kW heater is sufficient for normal operation
• A 1.1 kW main pump can meet nozzle output
• Easier energy consumption control
4. Transportation and Installation Ease
An excessively large bathtub will increase transportation difficulties.
A height of 78 cm (780 mm) is suitable for:
• Standard door frames
• Conventional outdoor installations
• Multiple support options
Therefore, the 1860 × 1310 × 780 mm dimensions are not arbitrary but industry-optimized based on functional requirements, component layout, and ergonomics.
What internal components of a 3-person spa hot tub affect its dimensions?
Taking the MEXDA 3-person spa hot tub as an example, its core components include:
• 3 kW heater × 1
• Control system × 1 set
• Main water pump 1.1 kW × 1
• Filter pump 0.25 kW × 1
• Air pump 0.3 kW × 1
• Nozzle configuration: 3 x 5-inch nozzles, 16 x 3/4-inch nozzles, 10 x bubble nozzles.
These components directly impact the dimensions.
1. Heater and Pump Require Sufficient Installation Space
The heater, main pump, filter pump, and air pump work together, requiring space at the bottom for:
• Equipment area
• Piping connection area
• Heat dissipation and maintenance area. The larger the equipment, the larger the corresponding housing size must be.

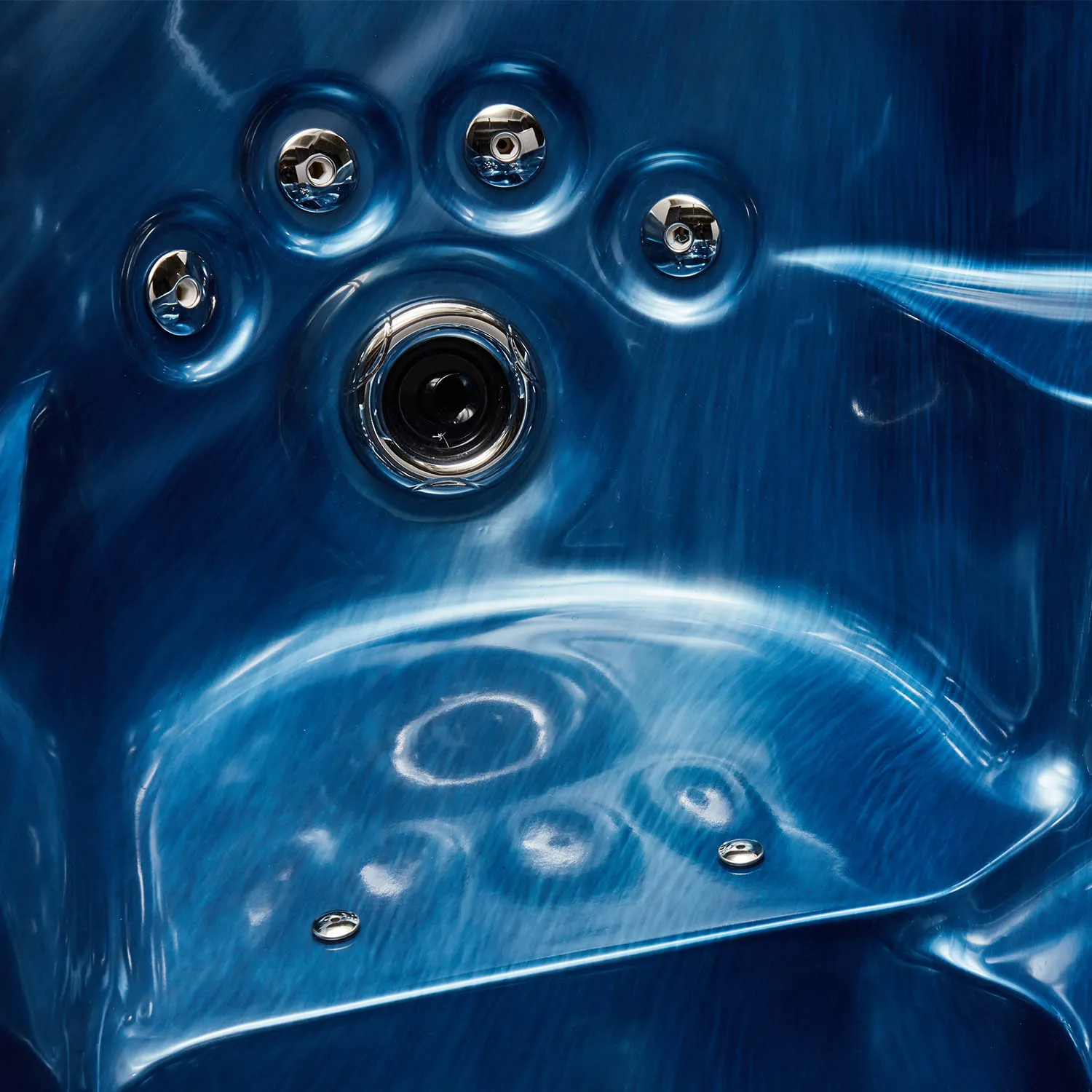

2. Number of Nozzles Determines Internal Structure
A 3-person spa hot tub has a considerable number of nozzles:
• 5" high-power nozzles: 3
• 3/4" medium nozzles: 16
• Aeration nozzles: 10
Nozzle arrangement requires:
• Sufficient wall thickness
• Sufficient curved panel area
• Sufficient length to accommodate seating and backrests
Therefore, the bathtub length needs to exceed 1800 mm.
3. Seating and Lateral Space Design
A width of 1310 mm ensures:
• Uncrowded center seat
• Naturally extending armrests on both sides
• Ample legroom
If the width is less than 1200 mm, comfort will be significantly affected.
Conclusion:
All internal components determine the final boundaries of the "size".
How many liters of water does a 3-person spa hot tub hold? Does capacity affect size?
While there are slight variations between brands, a typical 3-person spa hot tub capacity is approximately:
500 – 800 liters.
Larger capacity requires:
• A wider seating area
• A deeper tub
• More space for the base
This also affects the bathtub's height and width.
Generally speaking:
• A height of 780 mm ensures a comfortable water depth
• Comfortable soaking
• High heating efficiency
• Meets energy-saving requirements
This is the most common height range for 3-person models.
Are the external dimensions of a 3-person spa hot tub the same as the usable internal space?
Not entirely.
External dimensions include:
• Shell structure
• Insulation materials
• Equipment compartment/cabinet
• Plumbing space
Internal dimensions refer only to the space available for user movement.
For example, if the external width is 1310 mm, the usable internal space may only be about 1100–1150 mm, depending on:
• Wall thickness
• Insulation layer thickness
• Cover panel structure
Therefore, the "external dimensions" must be used when measuring installation space.
Will different types of 3-person spa hot tubs have different dimensions?
Yes, because they are designed for different purposes.
Common 3-person spa hot tub models can be categorized as follows:
1. Standard Seated Type
Common Dimensions:
1800–1900 mm × 1200–1400 mm × 760–820 mm
2. Seated + Semi-Reclining Combination Type
Common Dimensions:
1850–2000 mm × 1300–1500 mm × 760–820 mm
3. Mini Deep Immersion Type
Common Dimensions:
1600–1750 mm × 1100–1250 mm × 760–880 mm Different functional requirements will result in different dimensions.
How much installation space should be reserved when choosing a 3-person spa hot tub?
Installation must consider:
• Chassis opening
• Piping access space
• Exterior ventilation requirements
It is recommended to reserve at least:
30–50 cm of access space on each side
If installed in a recess, platform, or deck, the following is required:
• Provision for a removable equipment compartment structure
• Provision for a pump access port
• Provision for a drain outlet channel
Therefore, for a 1860 × 1310 × 780 mm bathtub, the actual installation area should be at least:
Approximately 2500 × 2000 mm of space.
This ensures stability, safety, and ease of future maintenance.
How does the size of a 3-person spa hot tub affect the experience?
Size will affect:
1. Comfort: Longer bathtubs typically have more comfortable recliners.
2. Optimized nozzle placement: Larger sizes support more nozzles and better distribution.
3. Water capacity: Affects heating efficiency and energy consumption.
4. Human space: Avoids a cramped feeling and enhances the bathing experience.
5. Noise Control: A wider chassis allows for a more optimized pump layout, reducing noise transmission.
Size not only determines appearance but also affects the quality of the user experience.
